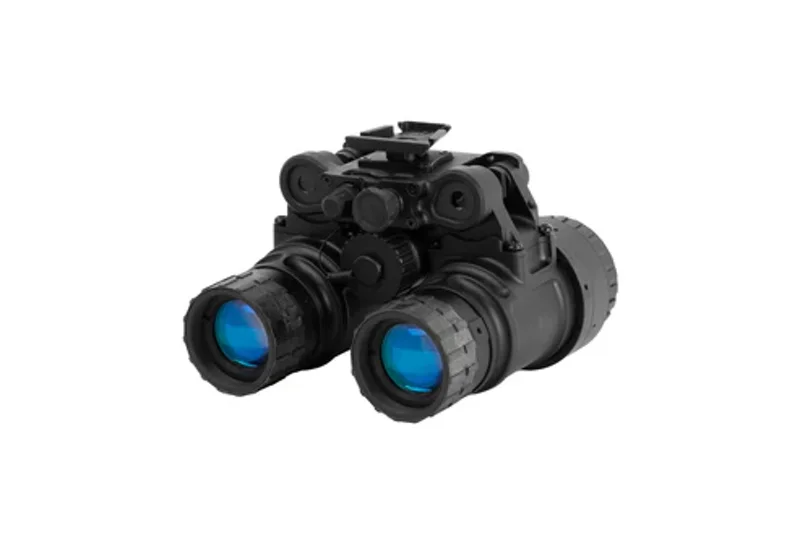

Low Light Innovations MH-1 Binocular NVG Housing Only

€0.00 (Out Of Stock)

This is for the HOUSING ONLY. For completed devices, please click Here.

The Low Light Innovations MH-1 binocular NVG is made from a mix of aluminum and magnesium yielding one of the strongest, lightest binocular systems on the market today. In its lightest configuration (RPO 3.0 lenses), system weight is only 433g (15.3oz).

The MH-1 has all of the features that users in the modern night vision users demand: manual gain, articulating pods, auto-pod shut-off, external power capable, takes standard PVS-14 milspec optics, and takes both MX-10160 format and MX-11769 format intensifiers.

The MH-1 is not only a binocular NVG but is the start of an entire, modular ecosystem that has monocular pods and even a quad-tube optic pods in the product roadmap. Using a strong foundational bridge and components, users can scale up and down as required as the mission or requirements dictate.

Main Features:

• Individual Pod Shut-off when rotated up
• Manual gain
• Dual IR illuminators
• IPD stops
• Modular pods (ability to split into individual monoculars)
• Onboard power (CR123A on launch; AA variants coming in the future)
• External power (4-pin Fischer - future module)
• Modular mounting (dovetail on launch; ball-detent in the future)
• Adjustable pod tension

Specifications:

• Focus Range: 9.8" to infinity
• Operational time: 25-90 hours
• Magnification: 1x
• Field of View: 40 Degrees (expandable with Boomslang 50° wide FOV optics)
• Interpupillary Adjustment: 51mm to 78mm
• Diopter Adjustment: -6 to +2
• Eye Relief: 25mm
• Weight: 433g (RPO 3.0 lightweight optics)
• Water Resistance: Submersible to 66ft for 2 hours
• Intensifier compatibility: MX-10160 (2- and 3-pad); MX-11769 version available for special-order (not recommended for Photonis tubes due to pigtail thickness)
